Project Description

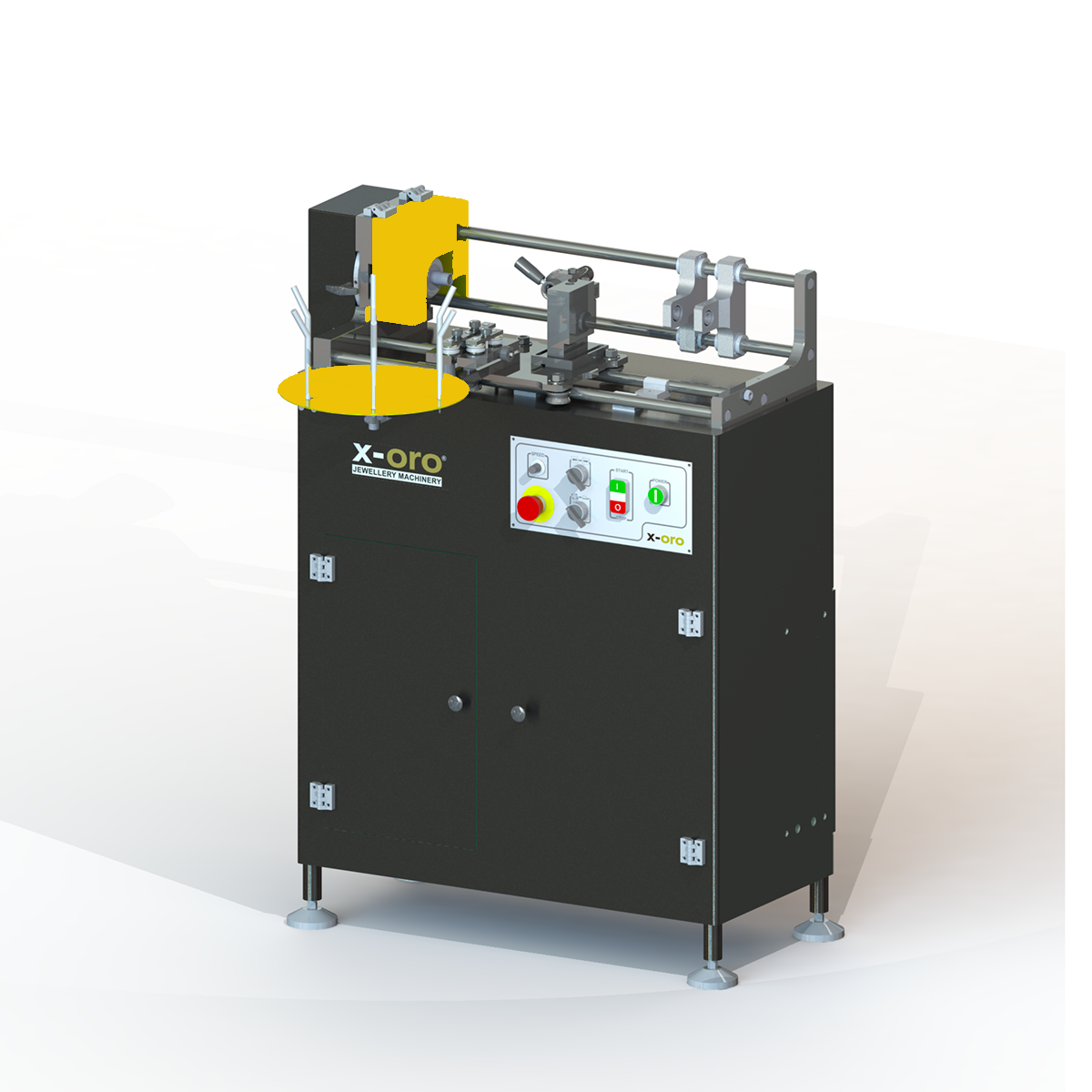

Winding machine to wind metal wires and tubes onto pins of various shapes, that is i.e. round, oval, rhomboid, flat etc.

Extremely versatile machine that can be equipped with devices according to one’s needs:

– it features a special ejection system, which makes it possible to obtain spirally-coiled wire by means of a continuous working process;

– equipped with self-centering chuck;

-through a pin- and die-device to wind welded and non-welded tube, with different diameters and sections, without internal core.

Machine equipped with electronic speed variator / inverter to facilitate the operator during the various types of working processes.

Dimensions 90 x 45 x h.112 cm
Weight 200 kg
