Project Description

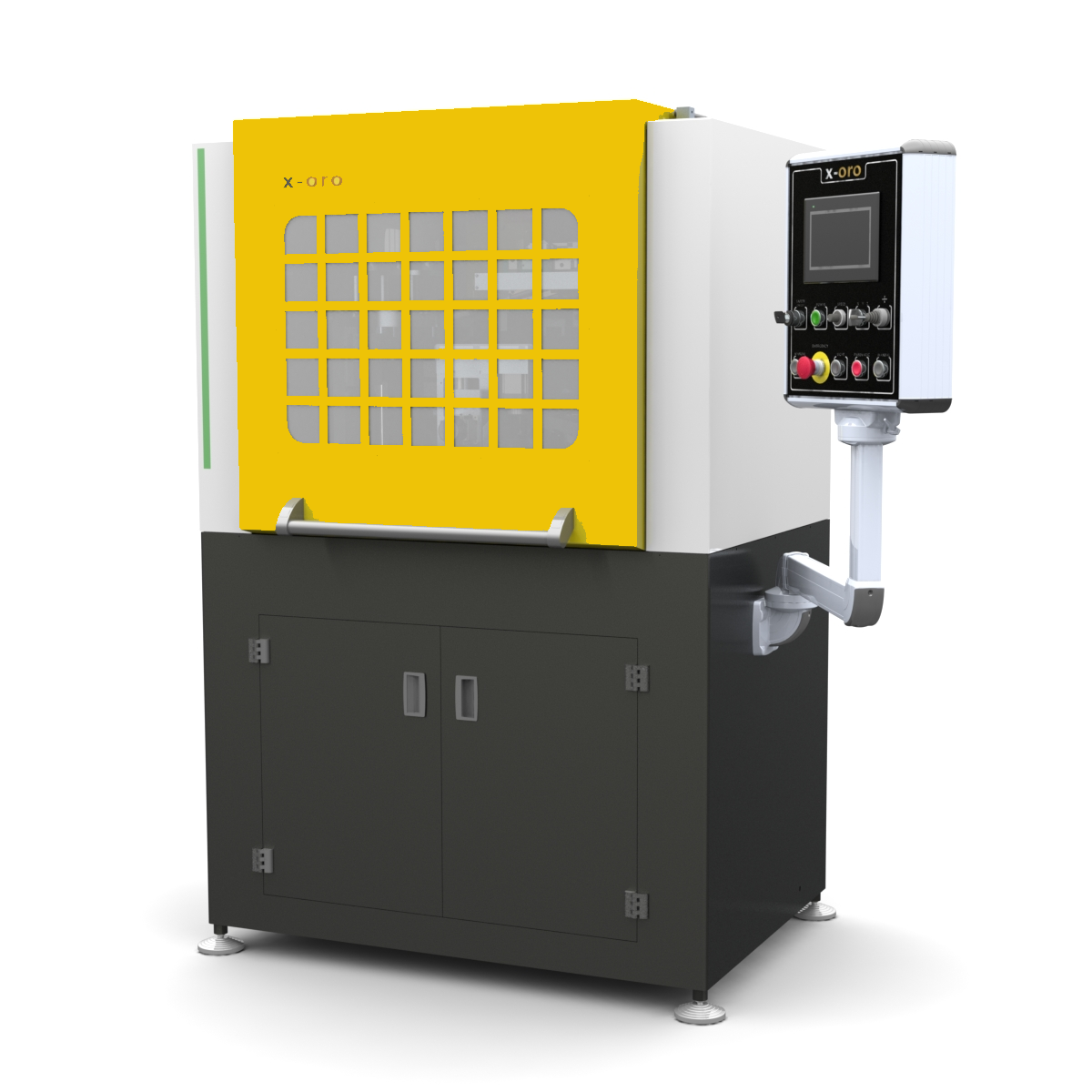

Diamond cutting machine for balls/beads / oval balls/ cylinders as from Ø 2 up to Ø 6 mm
The balls are placed on a vibrator. The action of the vibrator pushes the balls onto special guiding devices, leading them to the loading position; pliers take the balls and place them onto the motorized tailstocks, blocking them on the holes.
One or two diamond-cutting units perform the diamond-cutting process of the ball according to the drawing so as it has been previously set in the control device.
The already diamond-cut balls/beads fall into a special collection tray.
The processing takes place inside the cab, making it possible to recover metal waste.
| Tool rotation speed | 18000 rpm |
|---|---|
| Tool size | Ø 100 mm – Ø 80 mm on request |
| Power | 3 KW |
| Power supply | 220 V – 50/60 Hz |
| Pneumatic feeding | 6 bar |
| Machine weight | 400 kg |
| External dimensions | 90 x 90 x h.160 cm |
